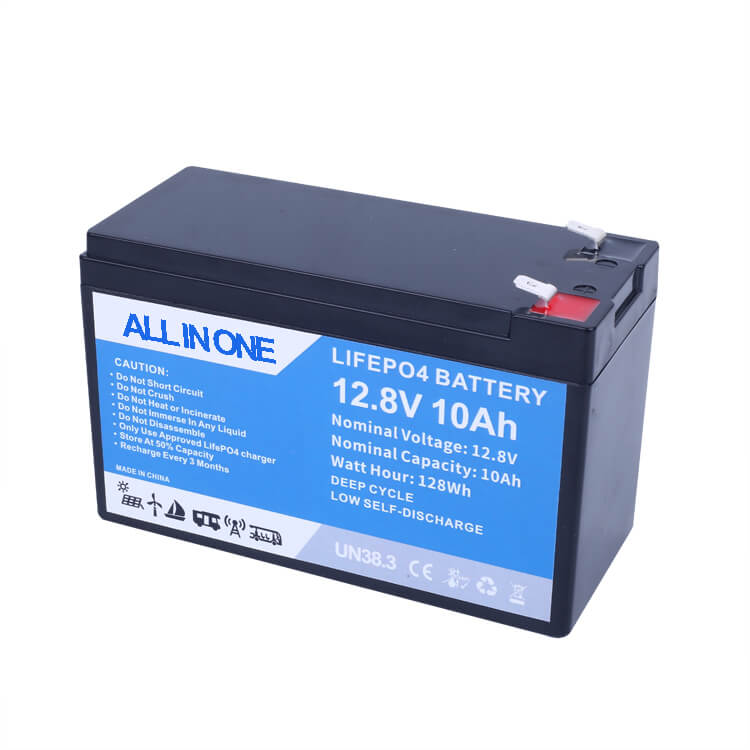

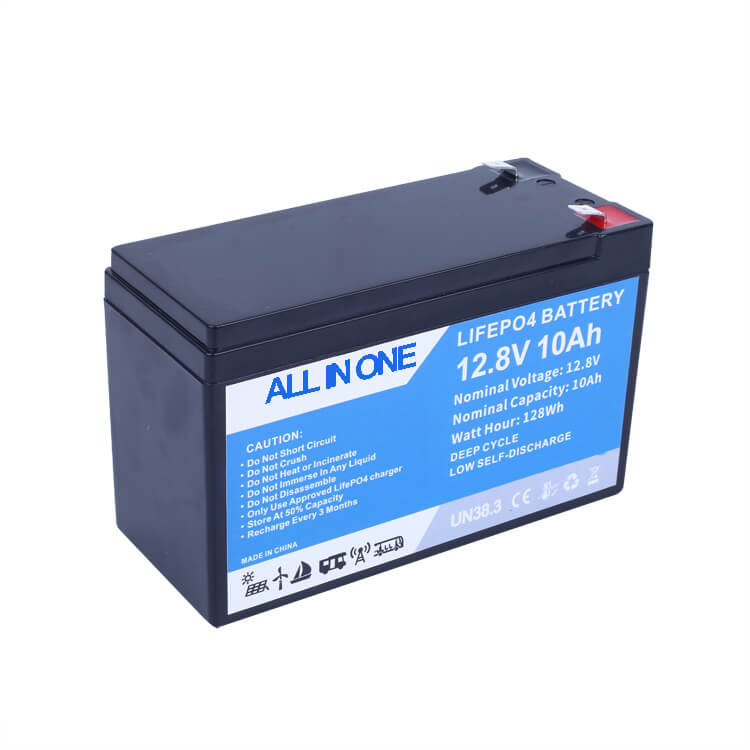

12.8V 10Ah Electric Scooter Solar Lithium-Ion Battery Lifepo4 Battery Rechargeable Lithium Ion Batteries

2022-03-03 02:53

Спецификација на производот

Не	Точка	Општ параметар			Забелешка
1	Номинален капацитет	Типично	10Ах		Standard discharge(0.2C5A) after Standard charge
		Минимална	9.5Ah
2	Номинален напон	12.8V			Среден напон на работа
3	Voltage at end of Испуштање	12V			Испуштање на отсечен напон
4	Напон на полнење	12.6V
5	Внатрешна импеданса	≤100mΩ			Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
6	Стандардно полнење	Constant Current 0.2C5A Constant Voltage 4.2V 0.01 C5A cut-off
7	Стандардно празнење	Constant current 0.2C5A end voltage 3.0V
8	Брзо полнење	Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off
9	Брзо празнење	Constant current 1.5C5A end voltage 3.0V
10	Максимална континуирана струја за полнење	0,5 C5A
11	Максимална струја на континуирано празнење	1.5C5A
12	Опсег на температурно работење	Полнење		0 ~ 45 60±25%R.H.	Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
		Испуштање		-20 ~ 60 60±25%R.H.
13	Storage Temperature Range	-20~25℃ 60±25%R.H.			Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.

12V Series

Точка	Modul Name	Напон	Капацитет	Димензија (мм)			Тежина	package
1	AIN-12v7Ah	12.8V	7AH	151	65	95	≈0.8Kg	415169144mm,8pcs/ctn
2	AIN-12V12AH	12.8V	12АХ	151	99	95	≈1.5Kg	520169105mm,5pcs/ctn
3	AIN-12V 18AH	12.8V	18AH	181	76	167	≈1.9Kg	420192173mm,4pcs/ctn
4	AIN-12V24AH	12.8V	24.7AH	175	165	125	≈2.5Kg	410375144mm,4pcs/ctn
5	AIN-12V42AH	12.8V	42AH	196	166	176	≈4.5Kg	214184194mm,2pcs/ctn

Апликација

Green energy systems (solar, wind, hydro), Solar power stations, Pump systems Telecommunications installations, Measurement stations, Boats or buoys, Signal station Survey and mapping system, Emergency lighting, Lawn lamp, Traffic lights ,Street lightening, Alarm installations, Weekend cottage camping

Нашата фабрика

Најчесто поставувани прашања

1. Can your battery be wired in series or parallel?

A: YES，YOU can connect up to four of these batteries in parallel or up to four in series.

2. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?

A: YES, the case can be opened to replace the BMS & cells

3. What is the shipping cost?

A: For you get the precise shipping cost, please tell us your required quantity and shipping address.

4. What is the delivery time? What is your standard packing？

A: Usually delivery in 7-15days, but could be changed according to the quantity or other things. A: 1 unit in a CARTON or 1 unit in a WOODEN, 60pcs/Pallet

5. What warranty do I have？

A: Warranty: 3years, we would provide repair or replacement with the warranty period.

6. Do you have Blue-tooth communication with your batteries?

A: Yes, please let us know if you require Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

7. Does the app allow to check the voltage of each cell?

A: YES, the App allows you to read the voltage of each at any time.

8. Can you modify the app so there is no chinese in it?

A: YES，The system language is English without Chinese.

9. What are your terms of payment?

A: The payment term will be 30%T/T for deposit and the balance before shipment

10. If your lithium battery goes into protection mode, how do you wake it up?

A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.

11. Do you have CE/ MSDS/ UN38.3 / certification for safe transport of goods?

A: YES.

12. Are you a factory？

A: YES, our factory is located in Anhui city.

13. Can I print my LOGO on it？

A: YES, LOGO/sticker/OEM/ODM welcomed.

Забелешка: Ние сме производител на батерии. Сите производи не поддржуваат малопродажба, ние работиме само за B2B бизнис. Ве молиме контактирајте не за цените на производите!
