Приспособен длабок циклус 36V 48V 72V 50ah 80ah 100ah литиумска батерија за РВ кампер за количка за голф

2024-03-15 02:39

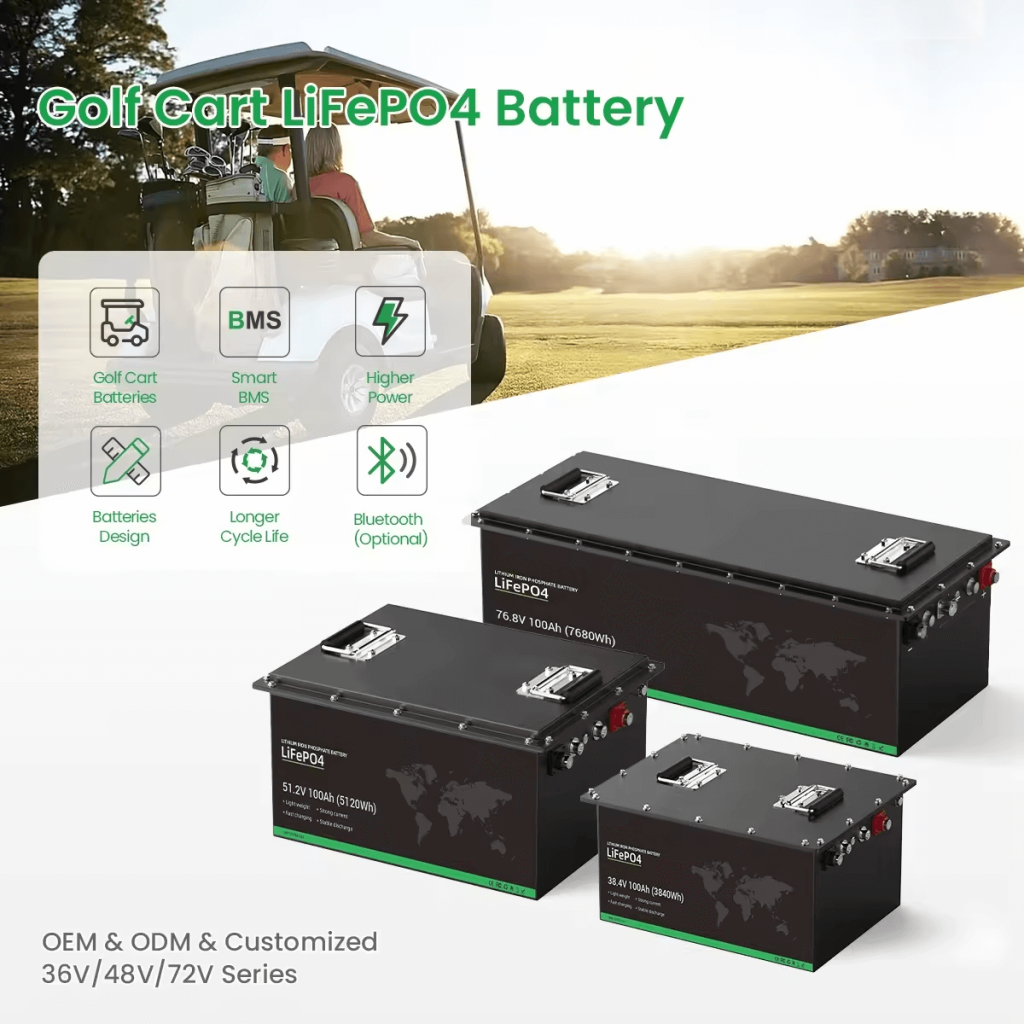

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Номинален напон	Номинален капацитет	Nominal Energy	Димензија	Тежина
36V  (Support Customized Capacity/Size)
LFP36-50	38,4V	50Ах	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	38,4V	60Ах	2304Wh	522*238*218mm	≈21kg
LFP36-80	38,4V	80Ах	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38,4V	100Ах	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)

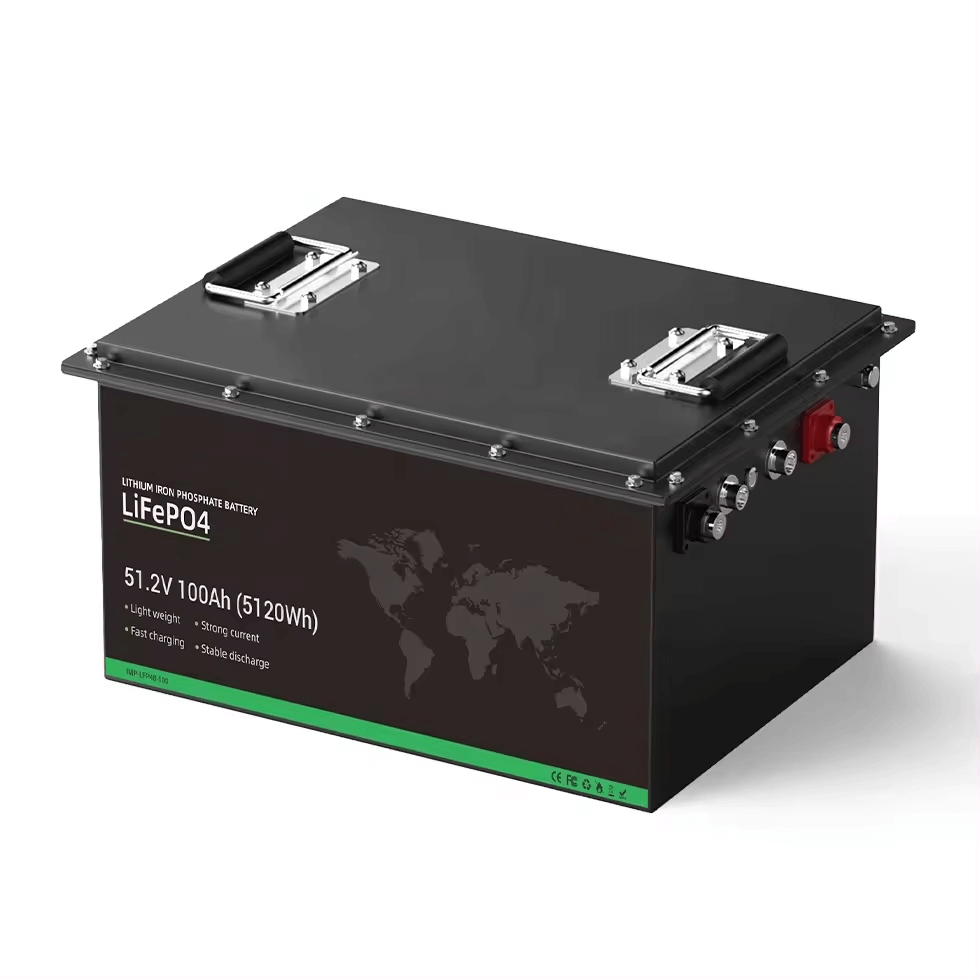

LFP48-50	51.2В	50Ах	2560Wh	522*238*218mm	≈25kg
LFP48-60	51.2В	60Ах	3072Wh	522*238*218mm	≈31kg
LFP48-80	51.2В	80Ах	4096Wh	522*238*218mm	≈32.5kg
LFP48-100	51.2В	100Ах	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76,8 V	50Ах	3840Wh	470*330*150mm	≈50kg

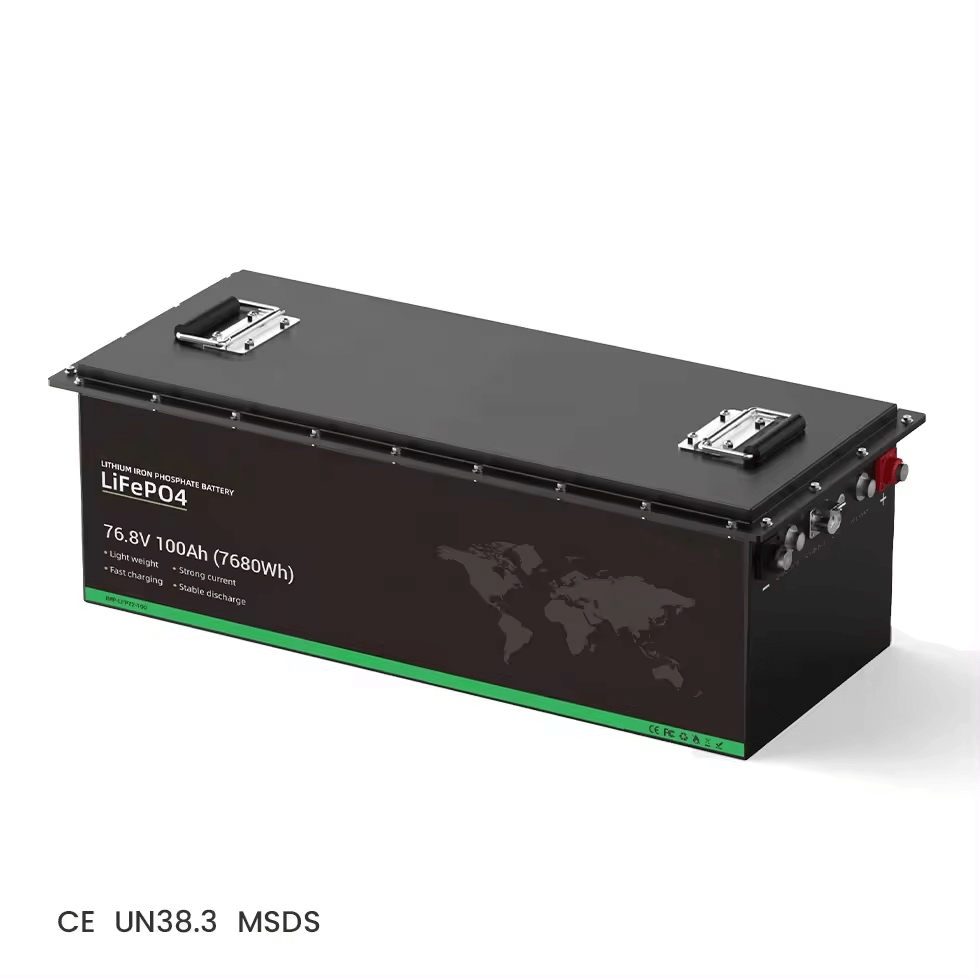

LFP72-100	76,8 V	100Ах	7680Wh	730*350*150mm	≈65kg
General
Животни циклуси		≥6000 cycles (80%DOD), at 25°C
Температура на полнење		0 ~ 45°C (32 ~ 113°F)
Температура на празнење		-20 ~ 55°C(-4 ~ 131F)
Температура на чување		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Изведба

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Апликација

Нашата фабрика



Испорака и пакување

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. За голема нарачка, испратете го авиокомпанијата AIR или OCEAN.

Најчесто поставувани прашања

П: Дали сте трговска компанија или производител?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

П: Може ли да имам примероци за тестирање? И што е водечкото време за нарачката за примерок?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

П: Дали прифаќате ОЕМ / ОДМ?
A: Yes,it is available.We have OEM group to design battery case.

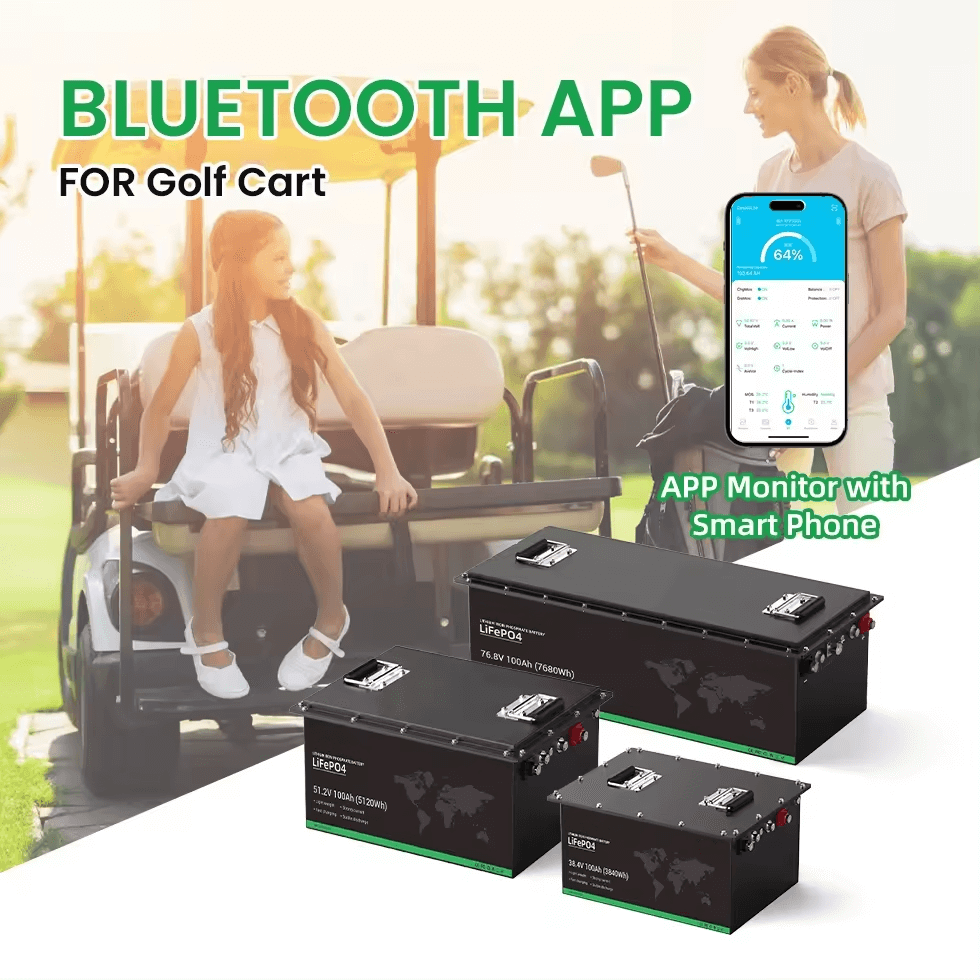

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.

П: Дали сте вистински капацитет на батеријата?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

П: Какви сертификати имате?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

П: Дали имате MOQ?
О: Не е ограничено. Мала цел исто така е добредојдена.Повеќето количество има подобра цена, ние ќе ја провериме најдобрата цена за вас.

П: Кој е вашиот рок на плаќање?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
